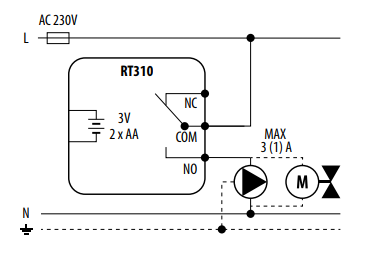

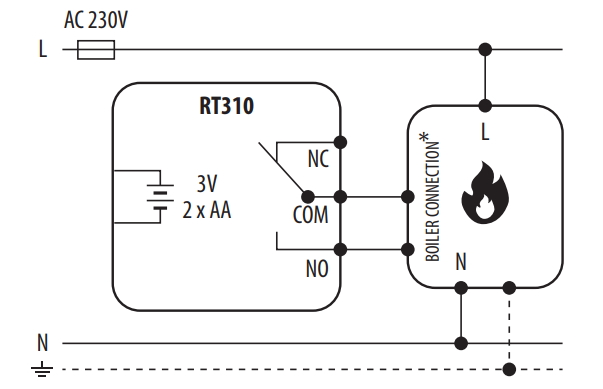

RT310 Wiring Diagrams (Hard Wired)

RT310 Wiring Diagrams (Hard Wired)

RT310 : Schémas de câblage(1.4.3) .



Graphical user interface, textDescription automatically generated
